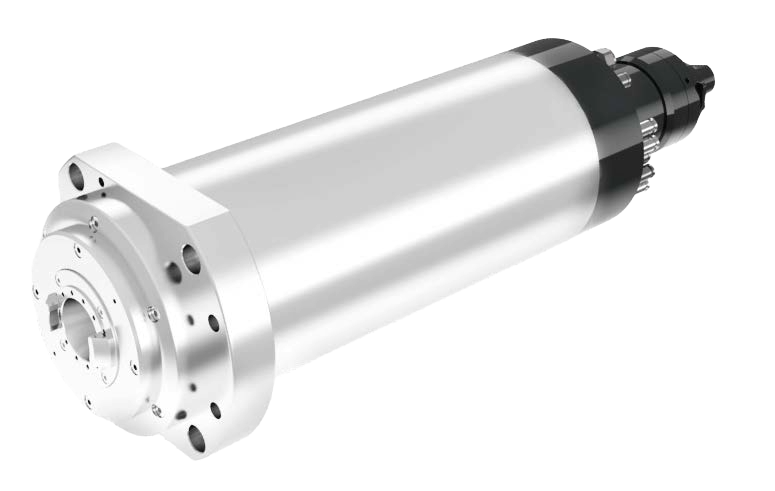

DGZX-12040 Dual-Winding BBT30 Spindle

The DGZX-12040 uses two winding ranges to extend the spindle's usable machining envelope. One range supports stronger low-speed cutting, while the second reaches 40,000 rpm for finishing, with optional through-spindle coolant for deeper-hole operations.
Diameter Φ120mm
Maximum speed 5968/14244rpm
Torque(S1) 12/7.4Nm
Power(S1) 7.5/11kW
Request Now
DGZX-12040 Dual-Winding BBT30 Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle modelDGZX-12040/11-BFEWQVCM
Mounting diameter (mm)120
Rated power (S1) (kW)7.5/11
Rated torque (S1) (Nm)12/7.4
Maximum torque (Nm)24/14.8
Rated speed (rpm)5,968/14,244
Maximum speed (rpm)15,000/40,000
Rated voltage (V)200/380
Motor typeAsynchronous dual-winding motor
Front bearing specification7009*2
Lubrication methodOil-air lubrication
Tool holder typeBBT30
Through-spindle coolantOptional configuration
Tool change methodMechanical Tool Change

DIMENSIONS
