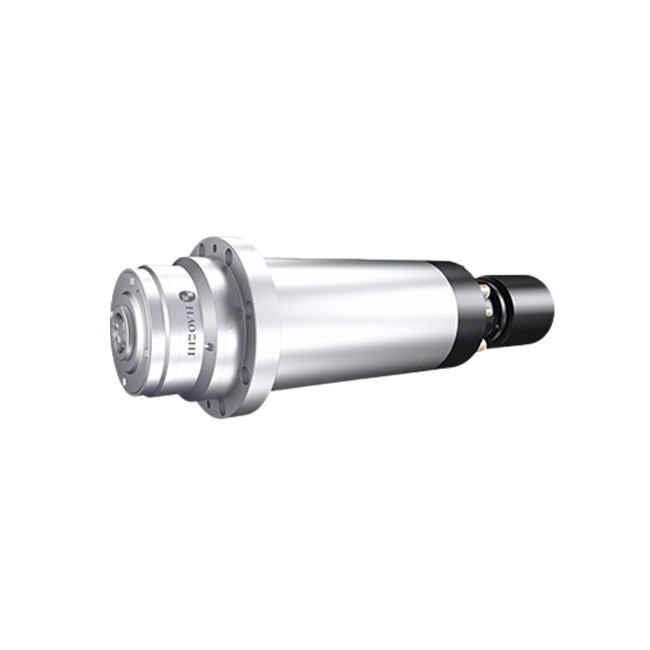

DGZX-12030 HSK-E40 Engraving Spindle

The DGZX-12030 combines an HSK-E40 interface with 30,000 rpm operation and 8.5 kW continuous output. Its 12.15 Nm intermittent torque and water-cooled structure support precision engraving and milling across non-ferrous metals and engineered materials.
Diameter Φ120mm
Maximum speed 30000rpm
Torque(S1) 8.1Nm
Torque(S6-40%) 12.15Nm
Power(S1) 8.5kW
Power(S6-20%) 12.75kW
Request Now
DGZX-12030 HSK-E40 Engraving Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDGZX-12030／8.5E-KFPWVS
Diameter（mm）Φ120
Maximum speed(rpm)30000
Tool interfaceHSK   E40
Bearing typeHybrid ceramic bearings
Max. Frequency(Hz)1000
Motor systemAsynchronous
Voltage(V)380
Power output S1 100% (KW) 8.5
Power Output S6 40%(KW) 12.75
Torque S1 100%(N·m)8.1
Torque S6 40%(N·m)12.15
Max.Current(A)77
Tool changeAutomatic direct tool change
Tool Change Air Pressure(MPa)0.55-0.60
Air Seal Presure(MPa)0.15
Air Seal Flow(L/min)45±15
Cooling systemWatering cooling
Coolant Flow Rate(L/min)4-6
Temperature sensor-motorKTY
Static Run-out≤2
Dynamic Run-out≤8
Vibration velocity(mm/s)0.8
Housing materialStainless steel
Weight(kg)27.5

DIMENSIONS
