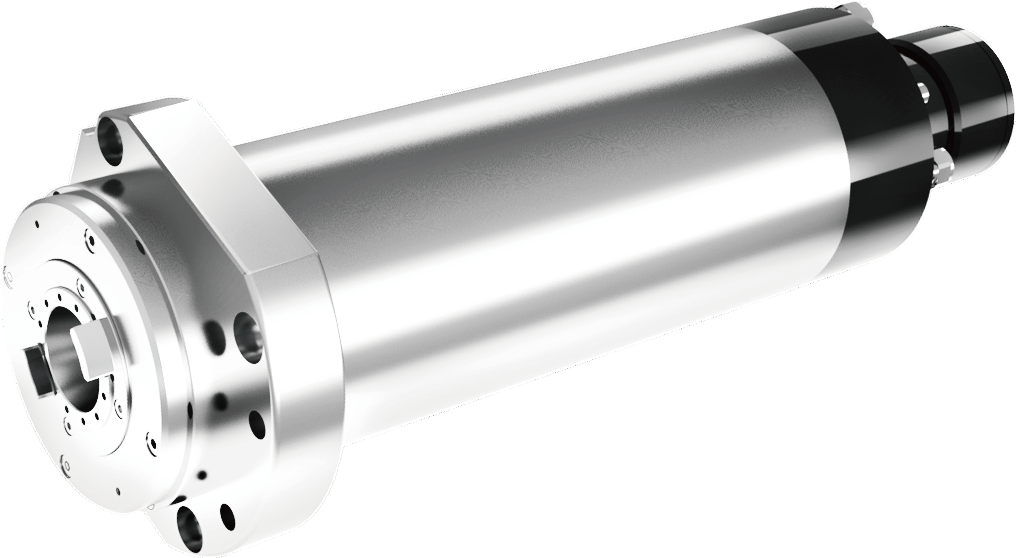

DGZX-12030 Drilling and Tapping Spindle

This DGZX-12030 version is developed for drilling and tapping centers rather than general-purpose engraving alone. Its 30,000 rpm speed, 8.5 kW rated output and 9.7 Nm maximum torque support high-speed holemaking, tapping and precision milling of 3C components.
Diameter Φ120mm
Maximum speed 30000rpm
Torque(S1) 8.1Nm
Torque(S6-40%) 9.7Nm
Power(S1) 8.5kW
Power(S6-20%) 10.2kW
Request Now
DGZX-12030 Drilling and Tapping Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

主轴型号
DGZX-12030/8.5-BFPWVS
最高转速(rpm)
30000
额定扭矩（Nm）
8.1
最大扭矩（Nm）
9.7
最高电压(V)
380
最大电流（A）
31
额定电流(A)
20.5
最高频率（Hz）
1000
最大功率（kW）
10.2
额定功率（kW）
8.5
重量（kg）
31.5



DIMENSIONS
