More Torque, Lighter Structure | Super Motor Tilting Head Redefines 5-Axis Machining Efficiency

In the global high-end equipment manufacturing industry, every 1% performance breakthrough requires extensive R&D investment and technological refinement. Haozhi Industrial empowers the DBDP-310 Direct-Drive Offset Tilting Head with its disruptive Super Motor technology, integrating an A/C-axis pneumatic caliper clamping brake system to establish a dual safeguard of “Power + Braking.”

This innovation achieves a 15% torque increase and 4% weight reduction, precisely meeting the machining requirements of integrated die-cast aluminum components for new energy vehicles, and delivering an efficient and high-precision solution for complex surface 5-axis machining.

Core Power: Super Motor + Structural Innovation Setting New Performance Benchmarks

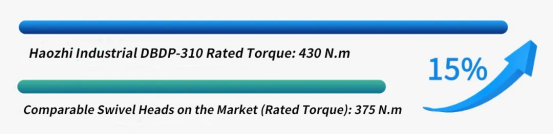

Higher Torque Within the Same Footprint — 15% Performance Boost

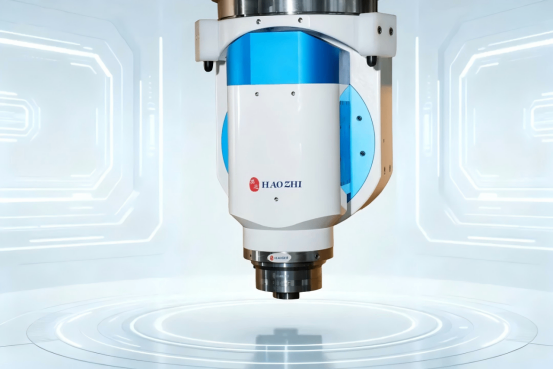

Leveraging Haozhi's technological advancements in motor engineering, the DBDP-310 Direct-Drive Offset Tilting Head delivers higher torque output within the same installation envelope.

The C-axis rated torque reaches 430 N·m, representing a 15% increase over comparable products. Combined with the A/C-axis pneumatic caliper brake system, it provides clamping torque of:

A-axis: 1080 N·m C-axis: 2160 N·m

Main spindle maximum speed: 20,000 rpm S1 torque: 50 N·m

Optimized for integrated die-cast aluminum components in new energy vehicle manufacturing, it ensures high machining accuracy while significantly increasing metal removal rate and shortening cycle time.

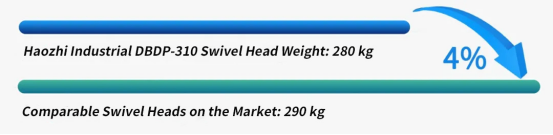

Lightweight Design — 4% Weight Reduction

The DBDP-310 adopts a lightweight structural design with a total unit weight of approximately 280 kg, achieving a 4% weight reduction compared to similar products.

Reduced inertia enhances dynamic response. Equipped with a high-precision encoder, the repeat positioning accuracy reaches ±2 arcsec during 5-axis simultaneous machining of complex surfaces, effectively minimizing accuracy loss and surface vibration marks caused by head lag.

Focused on New Energy Vehicle Manufacturing Addressing the High-Efficiency Precision Machining Challenges of Large Die-Cast Components

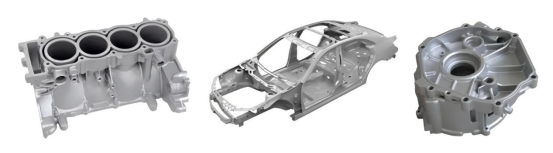

Integrated die-cast aluminum components for new energy vehicles are evolving toward larger and more integrated body structures, placing higher demands on machining accuracy, productivity, and yield rate.

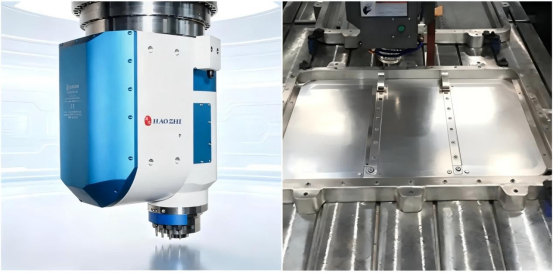

The DBDP-310, when integrated with a gantry machining center, becomes an optimal solution for this application:

High Torque for Efficient Roughing

A-axis maximum torque: 540 N·m C-axis maximum torque: 860 N·m Spindle torque: 50 N·m Enables efficient machining of large integrated die-cast aluminum component

High Precision and Stability

Pure direct-drive transmission eliminates backlash. A/C-axis repeatability of ±2 arcsec ensures ultra-high positioning accuracy.

Combined with pneumatic caliper clamping, it guarantees stable overhang machining and positioning cuts, effectively suppressing tool marks, improving surface finish, and ensuring batch-to-batch consistency.

Lightweight for Enhanced Acceleration and Productivity

The 280 kg lightweight structure significantly reduces motion inertia. Linear axis acceleration capability is enhanced, with a maximum rapid traverse speed of up to 120 m/min, improving overall machining efficiency.

Modular Design and Technological Independence Strengthen Domestic Substitution Capabilities

The DBDP-310 adopts a modular design, supporting optional spindle power configurations and multiple encoder brands. It can be integrated into gantry machining centers and other equipment platforms, reducing integration costs and shortening deployment cycles.

In core technologies, Haozhi Industrial adheres to independent innovation and has established proprietary intellectual property systems covering motors, encoders, and control systems, delivering stable and reliable high-end localized solutions.

Brand Empowerment — Driving Global Intelligent Manufacturing Through Core Technology

Haozhi Industrial remains committed to its mission:

“Striving to support global advanced equipment manufacturing and continuously enhance the human experience.”

With independently developed Super Motor technology deeply integrated with

modular design, the DBDP-310 Direct-Drive Offset Tilting Head achieves high

efficiency, high precision, and high stability, providing robust and reliable solutions for

global high-end precision manufacturing applications.
